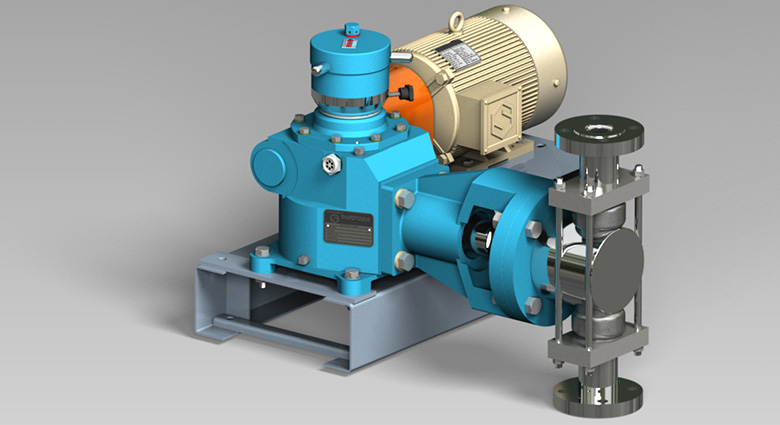

  Plunger Pumps


A plunger pump is a type of positive displacement pump where the high-pressure seal is stationary and a smooth cylindrical plunger slides through the seal. This makes them different from piston pumps and allows them to be used at higher pressures. This type of plunger pump is often used to transfer municipal and industrial sewage. Rotary piston and plunger pumps use a crank mechanism to create a reciprocating motion along an axis, which then builds pressure in a cylinder or working barrel to force gas or fluid through the plunger pump. The pressure in the chamber actuates the valves at both the suction and discharge points. Shapotools are reputed plunger pumps manufacturers in India.

The features of our plunger pumps are:


arrow Simple Design / Economical / Robust Design
arrow Easy To maintain
arrow Special Seal for Minimal Leakage
arrow High Pumping Pressures & API 675 Accuracies
arrow Low NPSHR
arrow Available with Jacketing for Molten Liquids

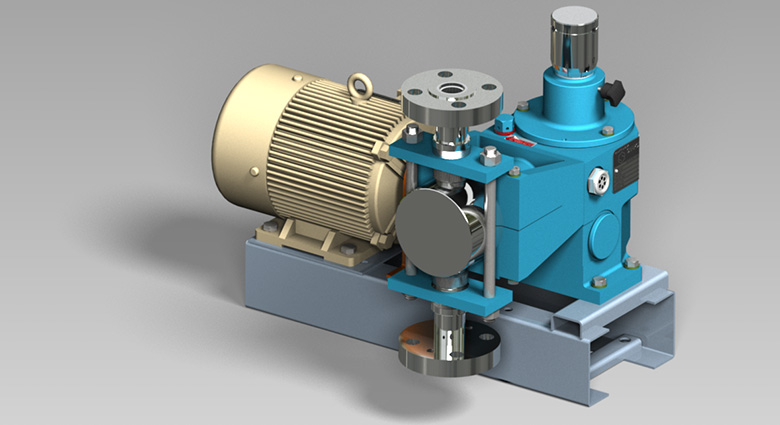

Standard Type
arrow Due to their simplicity they are quite economical.
arrow Low maintenance cost.

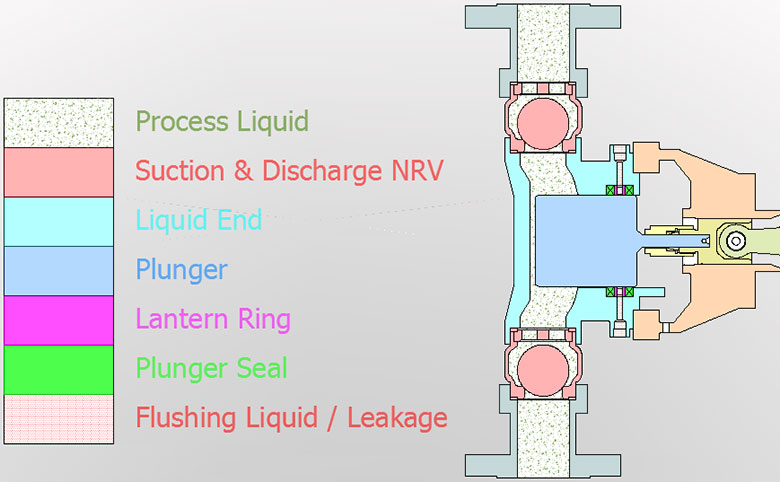

arrow They can be provided with latern ring flushing connections.
arrow They have Low NPSHR requirement.
arrow They have high reliability.
Standard Type

Jacketed Heads
arrow The jacket encloses the check valves and gland chamber.
arrow The valves are cartridge type and can be removed for servicing without dismantling the suction and discharge Connections.
Jacketed Heads

High Capacity Heads
For capacities greater than nine thousand Litres per Hour and having low discharge pressures, double acting type plunger pump heads can be provided.
High Capacity Heads

Special variations can be provided for extreme pumping conditions or liquids > Click Here

PUMP MODEL SELECTION CHART
Stroke Length (mm) Strokes per minute Plunger Force (Kgf) Plunger Diameters >  (mm) 15 25 35 45 55 60 65 77 90 100 115 127 160
20 57 248 Flow (LPH) > 11.0 30.6 59.9 99.0 147.9 176.0 206.5 289.8 - - - - -
Pr (Kg/cm2 g) > 116.0 41.8 21.3 12.9 7.9 6.3 5.0 2.8 - - - - -
70 228 Flow (LPH) > 13.5 37.5 73.5 121.6 181.6 216.1 253.7 356.0 - - - - -
Pr (Kg/cm2 g) > 106.6 38.4 19.6 11.8 7.1 5.6 4.4 2.4 - - - - -
100 252 Flow (LPH) > 19.3 53.6 105.1 173.7 259.4 308.8 362.4 508.5 - - - - -
Pr (Kg/cm2 g) > 117.9 42.4 21.6 13.1 8.1 6.4 5.1 2.9 - - - - -
114 228 Flow (LPH) > 22.0 61.1 119.8 198.0 295.8 352.0 413.1 579.7 - - - - -
Pr (Kg/cm2 g) > 106.6 38.4 19.6 11.8 7.1 5.6 4.4 2.4 - - - - -
141 216 Flow (LPH) > 27.2 75.6 148.1 244.9 365.8 435.3 510.9 717.0 - - - - -
Pr (Kg/cm2 g) > 101.0 36.4 18.6 11.2 6.6 5.1 4.0 2.1 - - - - -
196 168 Flow (LPH) > 37.8 105.1 205.9 340.4 508.5 605.2 710.2 996.7 - - - - -
Pr (Kg/cm2 g) > 78.6 28.3 14.4 8.1 4.6 3.4 2.6 1.1 - - - - -
30 60 444 Flow (LPH) > - - - 156.3 233.5 277.9 326.1 457.7 625.2 771.9 - - -
Pr (Kg/cm2 g) > - - - 23.1 15.4 13.0 11.1 7.0 4.5 3.2 - - -
75 413 Flow (LPH) > - - - 195.4 291.9 347.4 407.7 572.1 781.5 964.9 - - -
Pr (Kg/cm2 g) > - - - 21.5 14.4 12.1 10.3 6.4 4.0 2.8 - - -
100 348 Flow (LPH) > - - - 260.5 389.2 463.1 543.5 762.8 1042.1 1286.5 - - -
Pr (Kg/cm2 g) > - - - 18.1 12.1 10.2 8.0 5.0 3.0 1.9 - - -
120 331 Flow (LPH) > - - - 312.6 467.0 555.8 652.2 915.3 1250.5 1543.8 - - -
Pr (Kg/cm2 g) > - - - 17.2 11.5 9.2 7.5 4.6 2.7 1.7 - - -
141 319 Flow (LPH) > - - - 367.3 548.7 653.0 766.4 1075.5 1469.3 1813.9 - - -
Pr (Kg/cm2 g) > - - - 16.6 11.1 8.8 7.1 4.4 2.5 1.6 - - -
196 283 Flow (LPH) > - - - 510.6 762.8 907.7 1065.3 1495.0 2042.4 2521.5 - - -
Pr (Kg/cm2 g) > - - - 14.7 9.4 7.5 6.0 3.6 1.9 1.1 - - -
45 57 544 Flow (LPH) > - - - - 332.7 396.0 464.7 652.2 891.0 1099.9 - - -
Pr (Kg/cm2 g) > - - - - 18.9 15.9 13.5 9.2 6.1 4.4 - - -
70 544 Flow (LPH) > - - - - 408.6 486.3 570.7 800.9 1094.2 1350.8 - - -
Pr (Kg/cm2 g) > - - - - 18.9 15.9 13.5 9.2 6.1 4.4 - - -
93 489 Flow (LPH) > - - - - 542.9 646.1 758.2 1064.0 1453.7 1794.6 - - -
Pr (Kg/cm2 g) > - - - - 17.0 14.3 12.2 8.0 5.2 3.7 - - -
117 480 Flow (LPH) > - - - - 683.0 812.8 953.9 1338.6 1828.8 2257.8 - - -
Pr (Kg/cm2 g) > - - - - 16.7 14.0 12.0 7.8 5.0 3.6 - - -
149 471 Flow (LPH) > - - - - 869.8 1035.1 1214.8 1704.8 2329.0 2875.3 - - -
Pr (Kg/cm2 g) > - - - - 16.4 13.8 11.7 7.6 4.9 3.5 - - -
60 60 624 Flow (LPH) > - - - - 467.0 555.8 652.2 915.3 1250.5 1543.8 2041.6 2490.0 -
Pr (Kg/cm2 g) > - - - - 21.7 18.2 15.5 11.1 7.3 5.4 3.5 2.4 -
75 593 Flow (LPH) > - - - - 583.7 694.7 815.3 1144.1 1563.1 1929.7 2552.1 3112.5 -
Pr (Kg/cm2 g) > - - - - 20.6 17.3 14.8 10.5 6.8 5.1 3.2 2.2 -
100 533 Flow (LPH) > - - - - 778.3 926.3 1087.1 1525.5 2084.1 2573.0 3402.7 4149.9 -
Pr (Kg/cm2 g) > - - - - 18.5 15.6 13.3 8.9 5.9 4.3 2.6 1.7 -
123 513 Flow (LPH) > - - - - 957.3 1139.3 1337.1 1876.4 2563.4 3164.7 4185.4 5104.4 -
Pr (Kg/cm2 g) > - - - - 17.8 15.0 12.8 8.5 5.6 4.0 2.4 1.5 -
150 493 Flow (LPH) > - - - - 1167.5 1389.4 1630.6 2288.3 3126.2 3859.4 5104.1 6224.9 -
Pr (Kg/cm2 g) > - - - - 17.1 14.4 12.3 8.1 5.2 3.8 2.2 1.4 -
60HP 60 1440 Flow (LPH) > - - - - - - 652.2 915.3 1250.5 1543.8 2041.6 2490.0 3952.1
Pr (Kg/cm2 g) > - - - - - - 35.9 25.6 18.7 15.2 11.5 8.9 4.7
74 1360 Flow (LPH) > - - - - - - 804.4 1128.9 1542.2 1904.0 2518.0 3071.0 4874.2
Pr (Kg/cm2 g) > - - - - - - 33.9 24.1 17.7 14.3 10.8 8.2 4.3
93 1267 Flow (LPH) > - - - - - - 1011.0 1418.7 1938.2 2392.9 3164.6 3859.4 6125.7
Pr (Kg/cm2 g) > - - - - - - 31.6 22.5 16.5 13.3 10.1 7.5 3.8
112 1260 Flow (LPH) > - - - - - - 1217.5 1708.6 2334.2 2881.7 3811.1 4647.9 7377.2
Pr (Kg/cm2 g) > - - - - - - 31.4 22.4 16.4 13.3 10.0 7.4 3.8
150 1253 Flow (LPH) > - - - - - - 1630.6 2288.3 3126.2 3859.4 5104.1 6224.9 9880.2
Pr (Kg/cm2 g) > - - - - - - 31.2 22.2 16.3 13.2 9.6 7.4 3.7
90 60 1529 Flow (LPH) > - - - - - - 978.4 1373.0 1875.7 2315.7 3062.5 3734.9 5928.1
Pr (Kg/cm2 g) > - - - - - - 38.1 27.1 19.9 16.1 12.2 9.6 5.1
75 1458 Flow (LPH) > - - - - - - 1223.0 1716.2 2344.6 2894.6 3828.1 4668.7 7410.1
Pr (Kg/cm2 g) > - - - - - - 36.3 25.9 18.9 15.3 11.6 9.0 4.8
100 1413 Flow (LPH) > - - - - - - 1630.6 2288.3 3126.2 3859.4 5104.1 6224.9 9880.2
Pr (Kg/cm2 g) > - - - - - - 35.2 25.1 18.4 14.9 11.2 8.7 4.5
70 60 1529 Flow (LPH) > - - - - - - 1521.9 2135.7 2917.7 3602.2 4763.8 5809.9 9221.5
Pr (Kg/cm2 g) > - - - - - - 38.1 27.1 19.9 16.1 12.2 9.6 5.1
75 1458 Flow (LPH) > - - - - - - 1902.4 2669.6 3647.2 4502.7 5954.8 7262.4 11526.9
Pr (Kg/cm2 g) > - - - - - - 36.3 25.9 18.9 15.3 11.6 9.0 4.8
100 1413 Flow (LPH) > - - - - - - 2536.5 3559.5 4862.9 6003.6 7939.7 9683.2 15369.2
Pr (Kg/cm2 g) > - - - - - - 35.2 25.1 18.4 14.9 11.2 8.7 4.5
115 1315 Flow (LPH) > - - - - - - 2917.0 4093.5 5592.3 6904.1 9130.7 11135.7 17674.6
Pr (Kg/cm2 g) > - - - - - - 32.8 23.3 17.1 13.8 10.5 7.9 4.0
150 1218 Flow (LPH) > - - - - - - 3804.8 5339.3 7294.4 9005.4 11909.6 14524.8 23053.8
Pr (Kg/cm2 g) > - - - - - - 30.3 21.6 15.8 12.8 9.2 7.1 3.6

Note: The above chart is only given as a guide. Pumps are manufactured to meet your required capacities & pressures. Other SPMs can also be offered.
We reserve the right to change the data provided above without any notice.
