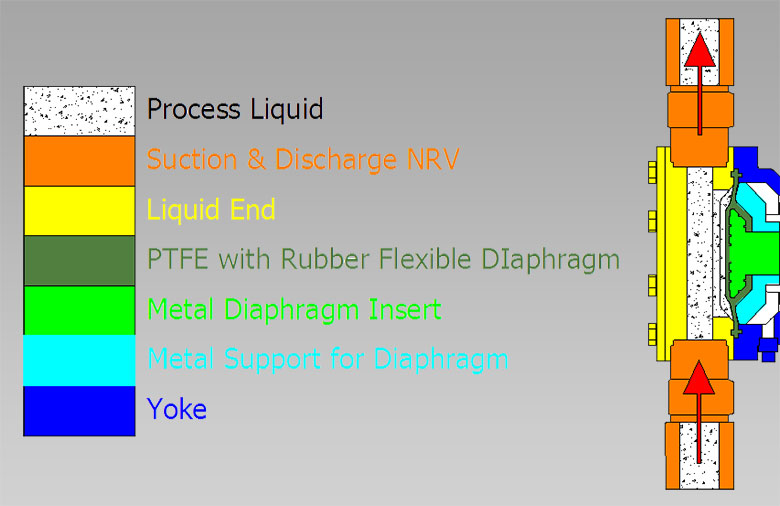

  Mechanical Diaphragm Pumps


Shapotools are a reputed mechanical diaphragm pumps manufacturers in India. A major reason to use mechanical diaphragm pumps is that they protect the pumping fluid from contamination because no hydraulic oil is used in the pump. Many customers prefer Shapotools mechanical diaphragm pumps, especially for pharmaceutical applications and fluids that react with hydraulic oil. Shapotools mechanically actuated Diaphragm pumps are designed to handle the most corrosive fluids and are also chemical and temperature resistant our offered pumps are developed employing cutting edge technology and utmost-grade components in conformity with set industrial standards. As well, the offered pumps are stringently analyzed by our well trained quality controllers in order to deliver a flawless range. Offered pumps are praised in the market for its chemical & temperature resistant.

The salient features of our specially designed mechanical diaphragm pumps in India are:

arrow Simple Design
arrow Economical
arrow Easy To maintain
arrow No Leakage
arrow Low NPSHR
arrow Heavy return spring for near Positive return of diaphragm
arrow Wide range of plastic & Metallic MOCs

Mechanical Diaphragm Pumps


Model

Stroke Lg (mm)

DIAPH DIA

SPM

Max Capacity (LPH)

Max Pressure (Kg/cm Sq)

Connection (mm)

Max Motor (KW)

DP/3/DIA/50

3

50

29

6

6

15

0.04

DP/3/DIA/50

3

50

48

9.9

6

15

0.04

DP/3/DIA/65

3

65

29

12

6

15

0.04

DP/2/DIA/80

2

80

49

20

8

15

0.37

DP/3/DIA/50

3

50

98

20

6

15

0.04

DP/3/DIA/65

3

65

48

20

6

15

0.04

DP/2/DIA/90

2

90

49

26

8

15

0.37

DP/3/DIA/50

3

50

144

31

6

15

0.06

DP/4/DIA/80

4

80

49

40

8

15

0.37

DP/3/DIA/65

3

65

98

42

6

15

0.06

DP/3/DIA/50

3

50

185

43

6

15

0.06

DP/4/DIA/90

4

90

49

52

8

15

0.37

DP/3/DIA/65

3

65

144

64

6

20

0.06

DP/8/DIA/80

8

80

49

89

8

20

0.37

DP/8/DIA/90

8

90

49

115

7.3

20

0.37

DP/8/DIA/100

8

100

49

143

5.6

20

0.37

DP/8/DIA/120

8

120

49

147

3.4

20

0.37

DP/8/DIA/80

8

80

98

178

8

25

0.37

DP/8/DIA/90

8

90

98

221

7.4

25

0.37

DP/8.5/DIA/130

8.5

130

49

243

8

25

0.75

DP/8/DIA/80

8

80

147

268

8

25

0.37

DP/8/DIA/100

8

100

98

286

5.7

25

0.37

DP/8/DIA/90

8

90

147

345

7

25

0.37

DP/8.5/DIA/150

8.5

150

49

350

7.5

25

0.75

DP/8/DIA/80

8

80

196

379

6

25

0.75

DP/8/DIA/120

8

120

98

388

3.5

25

0.37

DP/8.5/DIA/170

8.5

170

49

425

5.5

25

0.75

DP/8/DIA/100

8

100

147

429

5.4

25

0.37

DP/8/DIA/90

8

90

196

460

4.4

25

0.75

DP/8.5/DIA/130

8.5

130

98

487

7.8

25

0.75

DP/8/DIA/100

8

100

196

543

3.3

25

0.75

DP/8/DIA/120

8

120

147

582

3.3

25

0.75

DP/8.5/DIA/150

8.5

150

98

700

5.5

40

0.75

DP/8.5/DIA/130

8.5

130

147

730

7.1

40

0.75

DP/8/DIA/120

8

120

196

777

1.8

40

0.75

DP/8.5/DIA/170

8.5

170

98

851

4

40

0.75

DP/8.5/DIA/130

8.5

130

196

973

6.1

40

1.12

DP/8.5/DIA/150

8.5

150

147

1050

4.9

40

0.75

DP/8.5/DIA/170

8.5

170

147

1251

3.5

40

1.12

DP/8.5/DIA/150

8.5

150

196

1400

4.2

40

1.12

DP/8.5/DIA/170

8.5

170

196

1932

2.9

50

1.12
