  Our Products



SHAPOTOOLS are the pioneers of metering, proportioning and dosing Pumps in India since 1965.

Shapotools Metering Pumps are high precision positive displacement pumps, as per API 675 International code, for controlled volume pumps. The discharge can be varied from zero to maximum capacity while pumps are running or at rest. Our pump designs make them an ideal flow control element in chemical process, for the feeding of chemicals with a high degree of accuracy, even under very high discharge pressure conditions. Our products are robust and of unmatched quality, and offer considerable savings to customer on account of compactness, low installation, operational cost and minimum maintenance. Our design, manufacturing & testing facilities are geared to meet the exacting requirements of the customer. By closely interacting with our customer's needs, our product has continuously evolved to be one step ahead of the competition. While our competitors continue to flatter us by copying our older designs, we welcome you to our next generation of pumps!


Quality

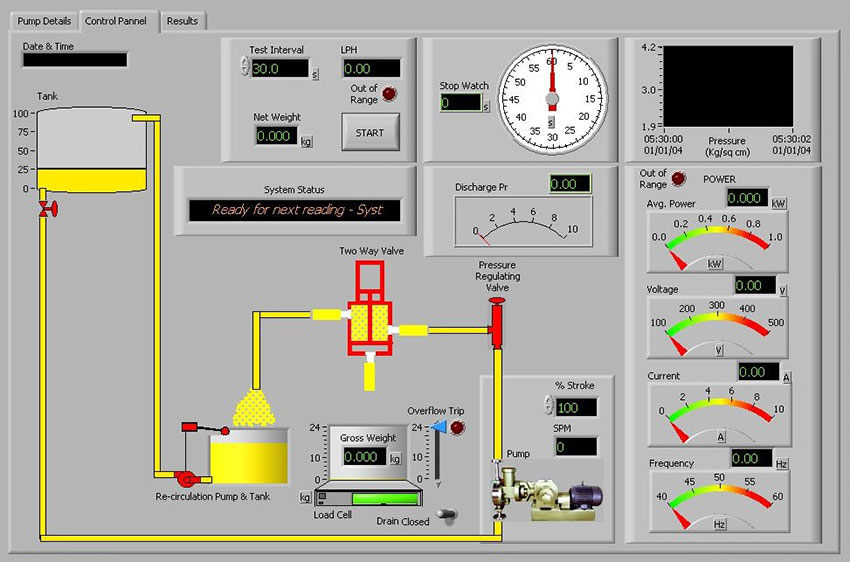

Our computerized Testing setup

Typical Characteristics

Shapotools Metering Pumps have a capacity output which is digital in Nature, linear in proportion to the length of stroke and is almost Independent of the discharge pressure.


Typical applications:

Typical applications of our pumps are the accurate dosing and mixing of acids, alkalis, slurries, viscous liquids, etc. which may be pumped at elevated, ambient or low temperatures, 24 hours a day. Our range covers everything from the single pump to a complete automated metering dosing system with all the necessary accessories, our pumps are of plunger and hydraulically operated diaphragm type with metering ranges from there to twenty thousand liters per hour per pump head. Pumps can be offered in simplex, duplex or Multiple Heads (upto twelve heads) for handling different chemicals with a common motor. Each head has independent connections and the capacity of each head can also be independently adjustable. The multiple heads of the pumps can be arranged in a linear chain or in a tier formation.


Stroke Adjustment

The stroke of the pump is controlled by a precision machined, hardened slotted crank, eccentric and connecting rod mechanism, which ensures a positive motion on both the forward and return stroke of the plunger. The pump discharge is variable while pump is running or at rest from zero (0%) to full stroke (100%)

Accessories

Liquid end material. Wetted parts can be offered in:
Stainless Steel 304/316/304L/316L
Steel
P.V.C. / P.P.
PTFE, PTFE Coating, Carbon filled or Glass filled Teflon
From other machinable materials.

The stroke of the pump can be controlled either:
Local, manual
Remote, Automatic, Electrically (4-20mA) or Pneumatically (0.2 – 1 kg/sq.cm.)

left_corner
bullet Reciprocating Metering & Dosing Pumps
right_corner

Wide range of capacities, pressures, and material of construction in plastic & Metal Suitable for a
wide range of applications like:
Read More...
Reciprocating Metering & Dosing Pumps

left_corner
bullet Glandless Hydraulic Diaphragm Pumps
right_corner

No Leakages/ Robust Design,
Hydraulically Balanced Sandwich (Double) Diaphragm with Rupture Detection, Built in Safety Relief Valve,
Read More...
Glandless Hydraulic Diaphragm Pumps

left_corner
bullet Plunger Pumps
right_corner

Simple Design / Economical / Robust Design, Easy To maintain, Special Seal for Minimal Leakage, High Pumping Pressures & API 675 Accuracies, Low NPSHR, Available with Jacketing for Molten Liquids
Read More...
Plunger Pumps

left_corner
bullet Mechanical Diaphragm Pumps
right_corner

Simple Design, Economical, Easy To maintain, No Leakage, Low NPSHR, Heavy return spring for near Positive return of diaphragm, Wide range of plastic & Metallic MOCs

Read More...
Mechanical Diaphragm Pumps

left_corner
bullet Electronic Pumps
right_corner

Low Cost,
Low Power Consumption,
Optional Stroke control,
Single Phase,
Wide range of plastic & Metallic MOCs
Read More...
Electronic Pumps

left_corner
bullet Dosing Systems
right_corner

Skid Mounted Pumps with all accessories,
Entire Dosing Systems with Tanks and all accessories, Wide range of plastic & Metallic MOCs, Compact design & minimal footprint
Read More...
Dosing Systems

left_corner
bullet Triplex,Spray, Hydrotest Pumps & Homogenizers
right_corner

Plunger & Diaphragm Type,
High Capacities and Pressures,
Robust Design,
Flow can be adjusted by changing motor speed.
Read More...
Triplex Pumps

left_corner
bullet Multiple Cylinder / Ratio Proportioning Pumps
right_corner

Ideal for pumping multiple liquids in different ratios, Or for higher turn down ratio, flow rates & pressures, Up to 12 pumping heads with one common motor
Read More...
Multiple Cylinder / Ratio Proportioning Pumps

left_corner
bullet Plastic Lined Glandless Hydrailic diaphragm Pumps
right_corner

Shapotools has now introduced some models of PP / PVDF / PTFE lined Glandless Hydraulic diaphragm pumps with a rugged 4 mm lining thickness for a lifetime performance while handling ultra corrosive chemicals.
Read More...
PVDF Lined Glandless Hydrailic diaphragm Pumps

left_corner
bullet Large Flow Rates
right_corner

Flows of 10 cM can be achieved in Hydraulic Diaphragm type pumps per head.
Flows of 20 cM can be achieved in Double Acting Piston type pumps per head.
Read More...
Large Flow Rates

left_corner
bullet Positive Displacement Pumps
right_corner

Wide range of capacities, pressures, and material of construction in plastic & Metal Suitable for a wide range of applications like:
Read More...
Positive Displacent Pumps

left_corner
bullet Automated Flow Control Pumps
right_corner

The flow can be controlled remotely automatically either by stroke or speed
Read More...
Automated Flow Control Pumps

left_corner
bullet Special Application Pumps
right_corner

With over half a century of experience, we have encountered various applications and have developed the technology to supply pumps for a variety of liquids like:
Read More...
Special Application Pumps

left_corner
bullet Accessories
right_corner

Motors, Safety Relief valves, Back Pressure valve (Antisiphon Valve), Pulsation dampers (Volume bottle / Diaphragm / Bladder Type),
Strainers (Y & Basket Type)
Read More...
Accessories
